The closure fixings are manufactured from A4-70 grade stainless steel. Vulcan+ can be fixed to the supporting structure by either one or two M10 fixings. Non-standard cleat designs can be supplied upon request.

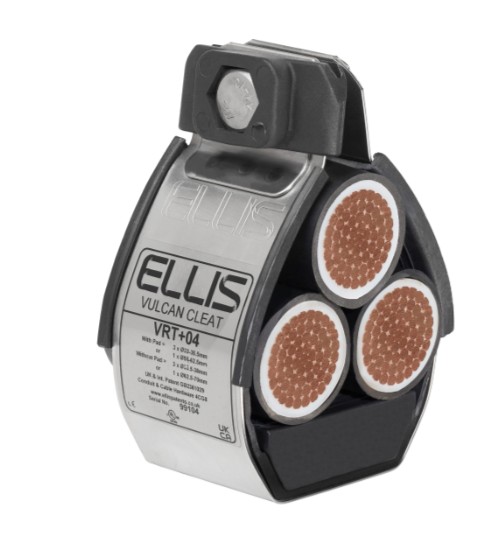

The Ellis Vulcan+™ cable cleat has been designed, developed, tested and manufactured in accordance with IEC 61914 (cable cleats for electrical installations). The cleat is available in a range of sizes with range taking ability to suit single and trefoil cable formations. The frame of the cleat is manufactured from corrosion-resistant 316L grade stainless steel, the cable is supported by a liner manufactured from a low smoke zero halogen (LSOH) material.
| Short Circuit Test @ 600mm (kA) | 116/149 |
|---|---|
| Short Circuit Test @ 300mm (kA) | 135 |
| Cable Range Min Dia. mm) | 81 |
| Cable Range Max Dia. mm) | 89 |
| Cable Range Min Dia. mm) SINGLE | 136 |
| Dimensions W (mm) | 188 |
| Dimensions W2 (mm) | 172 |
| Dimensions H (mm) | 212 |
| Dimensions D (mm) | 54 |
| Dimensions P (mm) | 75 |
| Fixing Holes | 1 x M10 |
| Weight | 618 |
