The closure fixings are manufactured from A4-70 grade stainless steel. Vulcan+™ can be fixed to the supporting structure by either one or two M10 fixings. Non-standard cleat designs can be supplied upon request.

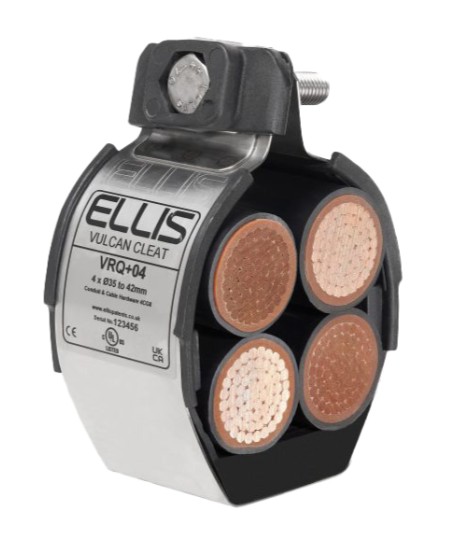

The Ellis Vulcan+™ cable cleat has been designed, developed, tested and manufactured in accordance with IEC 61914 (cable cleats for electrical installations). The cleat is suitable for quad formation. The frame of the cleat is manufactured from corrosion-resistant 316L grade stainless steel, the cable is supported by a liner manufactured from a low smoke zero halogen (LSOH) material.
| Short Circuit Test @ 600mm (kA) | 119 |
|---|---|
| Short Circuit Test @ 300mm (kA) | 134 |
| Cable Range Min Dia. mm) | 58 |
| Cable Range Max Dia. mm) | 63 |
| Dimensions W (mm) | 150 |
| Dimensions H (mm) | 200 |
| Dimensions D (mm) | 54 |
| Dimensions P (mm) | 50 |
| Fixing Holes | 1 x M10 |
| Weight | 499 |
