TWO HOLE SINGLE CLAMP 105-112

Add suffix for material type, options are as follows:
B = Black Polypropelene, LSF = Flame Retardant, Zero Halogen
E.G. EP2F-07 in Black Polypropelene becomes EP1F-07B. Two hole cable clamps can be supplied with a neoprene liner on request (ā€˜L’ should be added as a suffix to the part number). All liners have sidewall up-stands for secure fitting within the clamp.
Add suffix BL or LSFL to include a liner

SKU: EP2F-141 Category:

Description

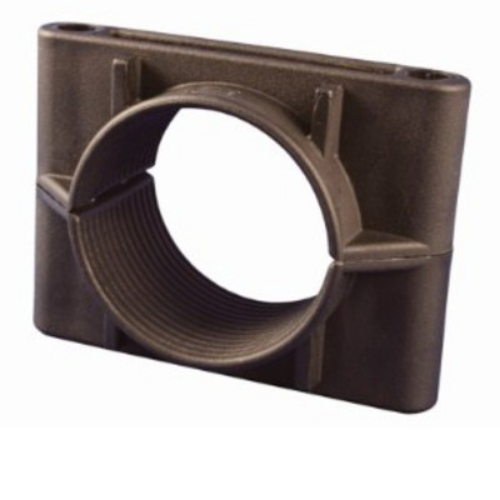

The Ellis 2F two hole cable clamps have been designed, developed, tested and manufactured in accordance with IEC 61914. The clamp is available in a range of sizes with range taking ability to suit single cables. The clamp is available in a range of sizes with range taking ability to suit single cables. The clamp is manufactured as standard in Black Polypropylene (B) or Black Flame Retardant VO Zero Halogen Phosphorus-Free UV Stabilised Nylon (LSF) or to special order in a London Underground Approved Material (LUL).

Additional information

Material Suffix

B/LSF/LUL

Cable Range Min Dia. mm) SINGLE

105

Dimensions W (mm)

178

Dimensions H (mm)

137

Dimensions D (mm)

100

Dimensions P (mm)

151

Fixing Holes

2 X M12

Pack Qty

5

Weight

382.4
