STAINLESS STEEL RESTRAINED PLUG 6PIN ARMOURED GLAND - AF316TSA - AF336TSA
STAINLESS STEEL RESTRAINED PLUG 6PIN ARMOURED GLAND - AF316TSA - AF336TSA - Image 2

STAINLESS STEEL RESTRAINED PLUG 6PIN ARMOURED GLAND – AF316TSA – AF336TSA

Need help choosing the right product?

Our team is here to help.

Contact Us

Table 1

Part Number Description Colour

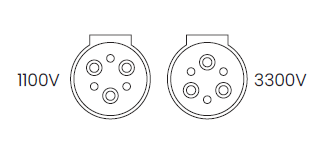

AF316TSA 1100V Stainless Steel Restrained Plug 6 Pin Armoured Gland Blue
AF336TSA 3300V Stainless Steel Restrained Plug 6 Pin Armoured Gland Red
NB: Plug supplied with Pilot Thimble
Phase Thimble – c/w screw AH115147 M6 x 40 skt. Cap Screw
Part Number CSA ID mm Utilux Die No.
F-4789S-8 25 8 38-92 Cu
F-4789S-10 35 10 38-115 Cu
F-4789S-11 50 11 38-115 Cu
F-4789S-13 70 13.5 38-142 Cu
F-4789S-14 95 14.5 38-165 Cu
F-4789S-16 120 16.6 38-165 Cu
F-4789S-18 150 18.5 38-200 Cu
F-4789S-20 185 20.5 38-200 Cu
NB: CSA is indicative only. Check conductor OD to ensure It with the thimble ID when making selection
Silicone Grommets
Part Number Cable Acceptance mm
F-4783-31 25-31
F-4783-38 31-38
F-4783-45 38-45
F-4783-52 45-52
F-4783-60 52-60
F-4783-12 60-72
F-4783-77 72-77
F-4783-82 77-82
F-4783-87 82-87
NB Earth Lug AH017258 supplied with Plug

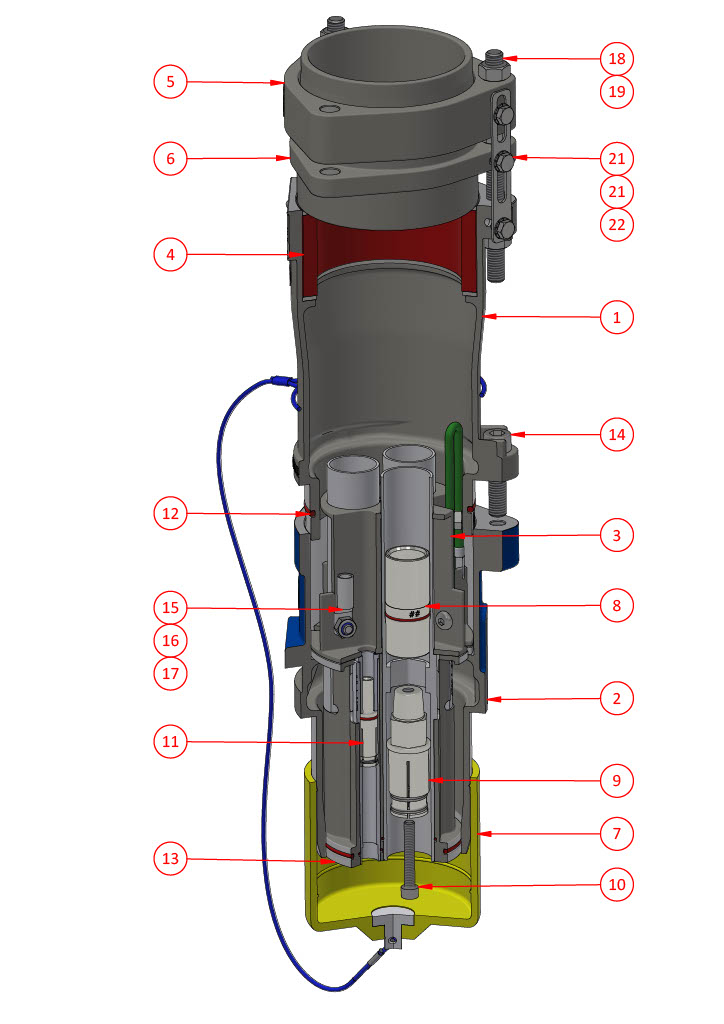

# Part Number Description
1 4780 300/425A Gland Body Stainless Steel
2 4779-2 300/425A Nose Cone with Slot Stainless Steel
3 F-4777S-60 300/425A 6-Pin Interior Assembly
4 F-4783# See Table 3
5 4795 300/425A Restrained Plug Armoured Clamp
6 4794 300/425A Restrained Plug Armoured Cap
7 F-264L Dust Cap With Lead
8 F-4789S# See Table 2
9 F-4786 Main Socket Assembly
10 AH115147 M6 x 40 Socket Head Cap Screw
11 F-4791S-60 Pilot Socket Assembly With Teflon Insulator
12 AI019009 0-ring ID 91.67 x Sect 3.53 Silicone
13 AI019027 0-ring ID 75.87 x Sect 2.62 Silicone
14 AH115149 M10 x 40 Socket Head Cap Screw Zinc Plated
15 AH017258 Earth Lug 25mm2 Cable 6mm Stud
16 AH122001 M6 Nyloc Nut
17 AH117116 M6 x 12 Button Head Screw
18 AH120019 M10 Nut
19 AH190001 M10 x 140 Threaded Rod
20 4776 Earth Strap Stainless Steel
21 AH152001 M6 Ext Serrated Washer
22 AH113162 M6 x 8 Hex Head Set Screw
