Receptacle (660V – 1100V) – 150 Amp Series

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number	Description	Colour
AG164B	660V Restrained Receptacle	Orange
AG114B	1100V Restrained Receptacle	Blue

NB: Receptacle supplied with Pilot Thimble

Phase Thimble – c/w screw AH151021 M4 x 40 skt. head

Part Number	CSA	ID mm	Utilux Die No.
F-4626	6	3.7	38-44 Cu
F-4626-0	16	5.5	38-63 Cu
F-4626-1	25	7.1	38-77 Cu
F-4626-2	35	8.4	38-92 Cu
F-4626-3	50	9.5	38-104 Cu
F-4626-4	70	11.2	38-115 Cu
F-4626-5	95	13.4	38-142 Cu

NB: CSA is indicative only. Use ID for final selection

Earth Thimble – c/w screw AH151037 M6 x 12 csk. head

Part Number	Cable Acceptance mm	ID mm	Utilux Die No.
F-4648S	10	4.7	38-57 Cu
F-4648-1S	16	5.5	38-63 Cu
F-4648-2S	25	7.1	38-77 Cu
F-4648-3S	35	8.4	38-92 Cu
F-4648-4S	50	10.0	Solder Only

NB: F-4648-2S supplied with Receptacle

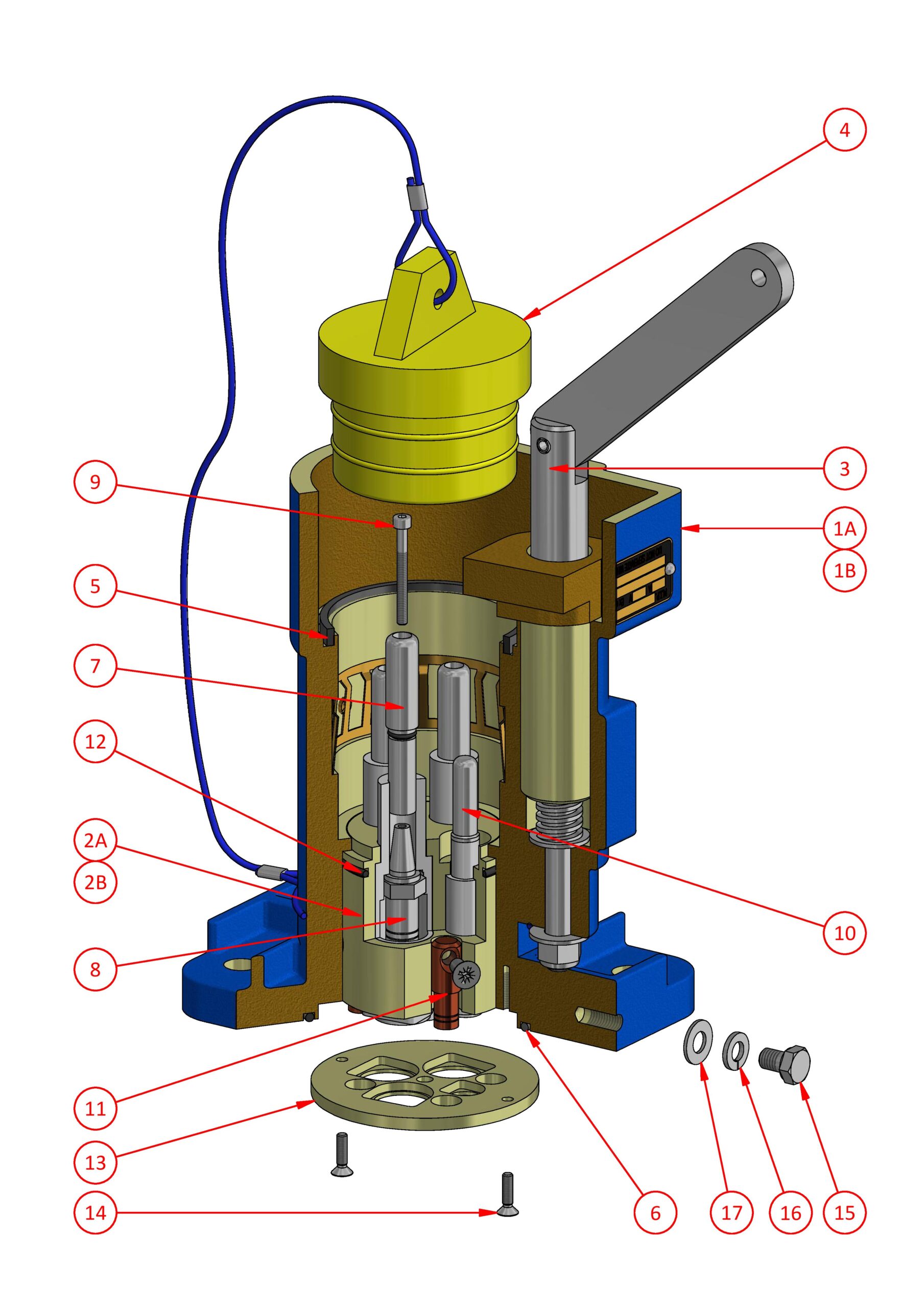

#	Part Number	Description
1A	F-3184-164	660V Receptacle Body c/w items 1A, 3, 5, 6, 16, 17 & 18
1B	F-3184-114	1100V Receptacle Body c/w items 1B, 3, 5, 6, 16, 17 & 18
2A	F-4621	Interior c/w O-Ring, Earth Thimble, Retaining Plate & Screws
2B	F-4621KIT	Interior Service Kit c/w O-Rings, Insulators, Pilot Pin Assy, Retaining Plate & Screws
3	3401B	Jacking Screw
4	F-310	Sealing Plug
5	4401-2	Seal
6	AI019011	O-ring ID 91.67 x sect. 3.53
7	F-4623	Phase Pin c/w O-ring AI019001
8	See Table 2	Phase Thimble
9	AH151021	Screw M4 x 40 skt. head
10	F-854	Pilot Pin & Thimble Assembly c/w Insulator
11	F-4648-2S	Earth Thimble c/w screw AH151037 M6 x 12 csk. head
12	AI019003	O-ring ID 63.17 x sect. 2.62
13	4628	Interior Retaining Plate
14	AH151022	Screw M4 x 16 csk. head
15	AH113091	Screw M8 x 10 hex. head
16	AH009363	Spring Washer 5/16"
17	AH009277	Washer 5/16"
