Multicore Screened Flexible Control PVC/NBR Cable EMC V90°C 300/500V

Typical Uses

Machine tools, construction and engineering equipment, conveyors and AC Variable Speed Drives, load banks, ship to shore cables, and other applications requiring screen cables for EMC applications.

The materials used in the manufacture of these cables are RoHS Compliant.

Temperature Range: -20 to +90°C static
-5 to +90°C flexing

Maximum Conductor Temperature: 90°C

Rated Voltage: 300/500V

Relevant Standards: AS/NZS 3808, AS/NZS 1125, IEC 60332-1

Bending Radius: 8 times diameter after install
12 times diameter during install

Download Product PDF

Need help choosing the right product?

Our team is here to help.

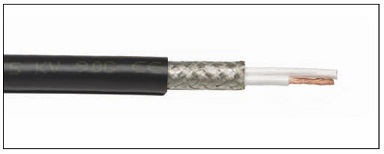

Cable Construction

Conductors: Annealed fine wires of plain electrolytic copper stranded for high flexibility. Class 5 conductor.
Insulation: PVC Insulated V90°C
Screening: Tinned copper braid 85% minimum coverage.
Protective sheath: Flame retardant, oil resistant Aflex NBR Elastomer for outstanding flexibility and durability in most hostile environments.

UV stabilised and flame retardant.

Technical Data

Part Number	Size mm²	Nom. Stranding No./mm	Nom. O.D. mm	Approx. Cable Weight Kg/Km
