Multicore Flexible Control PVC/PVC Cable 75°C 300/500V

Multicore Flexible Control PVC/PVC Cable 75°C 300/500V

Typical Uses

Power:
Machine tools, construction and engineering equipment, conveyors, load banks or other applications requiring numbered control cables.

The materials used in the manufacture of these cables are RoHS Compliant.

Temperature Range: -20 to +75°C static
-5 to +75°C flexing
Maximum Conductor Temperature: 75°C
Rated Voltage: 300/500V
Relevant Standards: AS/NZS 1125, AS/NZS 3808, IEC 60332-1
Bending Radius: 8 times diameter after installed
12 times diameter during install
Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

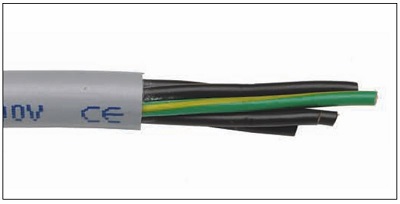

Cable Construction

  1. Conductors:
    Annealed fine wires of plain electrolytic copper stranded for high flexibility. Class 5.
  2. Insulation: PVC Insulated V75
  3. Cores:
    Black insulated with sequential white numbers, 1 green/yellow.
  4. Protective sheath:
    Flame retardant, oil resistant Special PVC for outstanding flexibility and durability in most hostile environments.

UV stabilised and flame retardant.
Sheath in grey or black.

Technical Data

Part Number Size mm² Nom. Stranding No./mm Nom. O.D. mm Approx. Cable Weight Kg/Km
