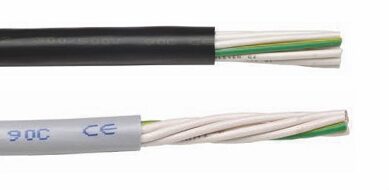

Multicore Flexible Control PVC/NBR Cable 75°C 300/500V

Typical Uses

Power: Machine tools, construction and engineering equipment, conveyors, load banks or other applications requiring numbered control cables.

The materials used in the manufacture of these cables are RoHS Compliant.

Temperature Range: -20 to +75°C static, -5 to +75°C flexing

Maximum Conductor Temperature: 75°C

Rated Voltage: 300/500V

Relevant Standards: AS/NZS 1125, AS/NZS 3808, IEC 60332-1

Bending Radius: 6 times diameter after installed, 10 times diameter during install

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Cable Construction

Conductors:
Annealed fine wires of plain electrolytic copper stranded for high flexibility. Class 5
Insulation:
PVC Insulated V75
Cores:
White insulated with sequential black numbers, 1 green/yellow. 2 core: White core numbers, no Earth.
Protective sheath:
Flame retardant Aflex oil resistant NBR Rubber for outstanding flexibility and durability in most hostile environments.

UV stabilised and flame retardant.
NBR R75°C Sheath in grey or black.

Technical Data

Part Number	Size mm²	Nom. Stranding No./mm	Nom. O.D. mm	Approx. Cable Weight Kg/Km

HO5RN-F 300/500V

HO7RN-F 0.6/1kV

Colours = Black or Grey subject to availability. Normally stocked Black Sheath marked *. Standard colour Grey. Colour to be noted at end of part number.
