| Part Number | Description | Colour |
|---|---|---|
| AG664BE | 660V Restrained Earthing Receptacle | Orange |
| AG614BE | 1100V Restrained Earthing Receptacle | Blue |
| Part Number | CSA | ID mm | Utilux Die No. |
|---|---|---|---|
| 123 | 123 | 123 | 123 |
| Part Number | ID mm | Utilux Die No. |
|---|---|---|
| 123 | 123 | 123 |
| Part Number | Cable Acceptance mm | ID mm | Utilux Die No. |
|---|---|---|---|
| 123 | 123 | 123 | 123 |

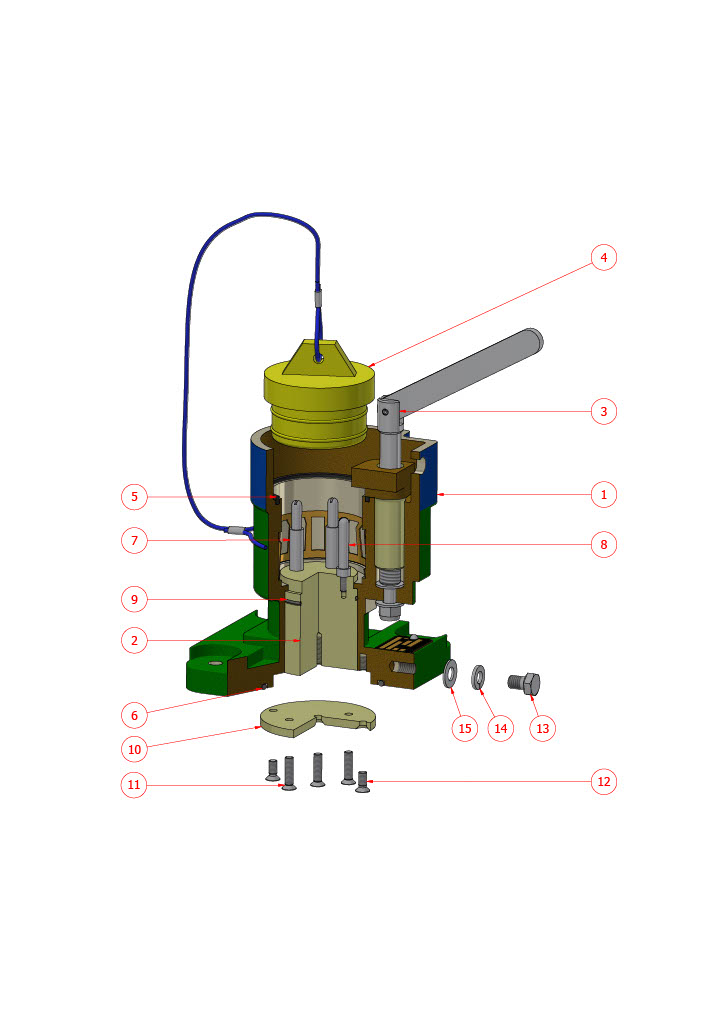

| # | Part Number | Description |
|---|---|---|
| 1 | 3492B | Receptacle Body |
| 2 | 4564E | Earthing Receptacle Interior |
| 3 | 3856 | Jacking Screw |
| 4 | F-309 | Sealing Plug |
| 5 | 4401-1 | Seal |
| 6 | AI019006 | O-ring ID 82.14 x sect 3.53 |
| 7 | 4566E | Phase Pin |
| 8 | 4569E | Pilot Pin |
| 9 | AI019008 | O-ring ID 47.35 x sect 1.78 |
| 10 | 4571E | Interior Retaining Plate |
| 11 | AH112500 | Screw M5 x 20 csk. head |
| 12 | AH151034 | Screw M5 x 12 csk. Head |
| 13 | AH113091 | Screw M8 x 10 hex. Head |
| 14 | AH009363 | Spring Washer 5/16" |
| 15 | AH009277 | Washer 5/16" X 5/8" |
