Bolted Coupler (Body Size B – 660V – 1100V) AA364T

Need help choosing the right product?

Our team is here to help.

Table 1

Coupler supplied with Pilot Thimble

Phase Thimble – c/w screw AH009868 1/4″ x 2 1/4″ skt. head

Part Number	CSA	ID mm	Utilux Die No.
F-201-432	25	8.0	38-92 Cu
F-201-302	35	9.5	38-115 Cu
F-201-303	50	10.5	38-115 Cu
F-201-303-1	70	12.8	38-142 Cu
F-201-304-1	95	14.0	38-165 Cu
F-201-305-1	120	16.0	38-165 Cu
F-201-306-1	150	18.0	38-183 Cu
F-201-307-1	185	21.8	38-231 Cu
F-201-326-1	240	24.2	SOLDER ONLY

CSA is indicative only. Use ID for thimble selection

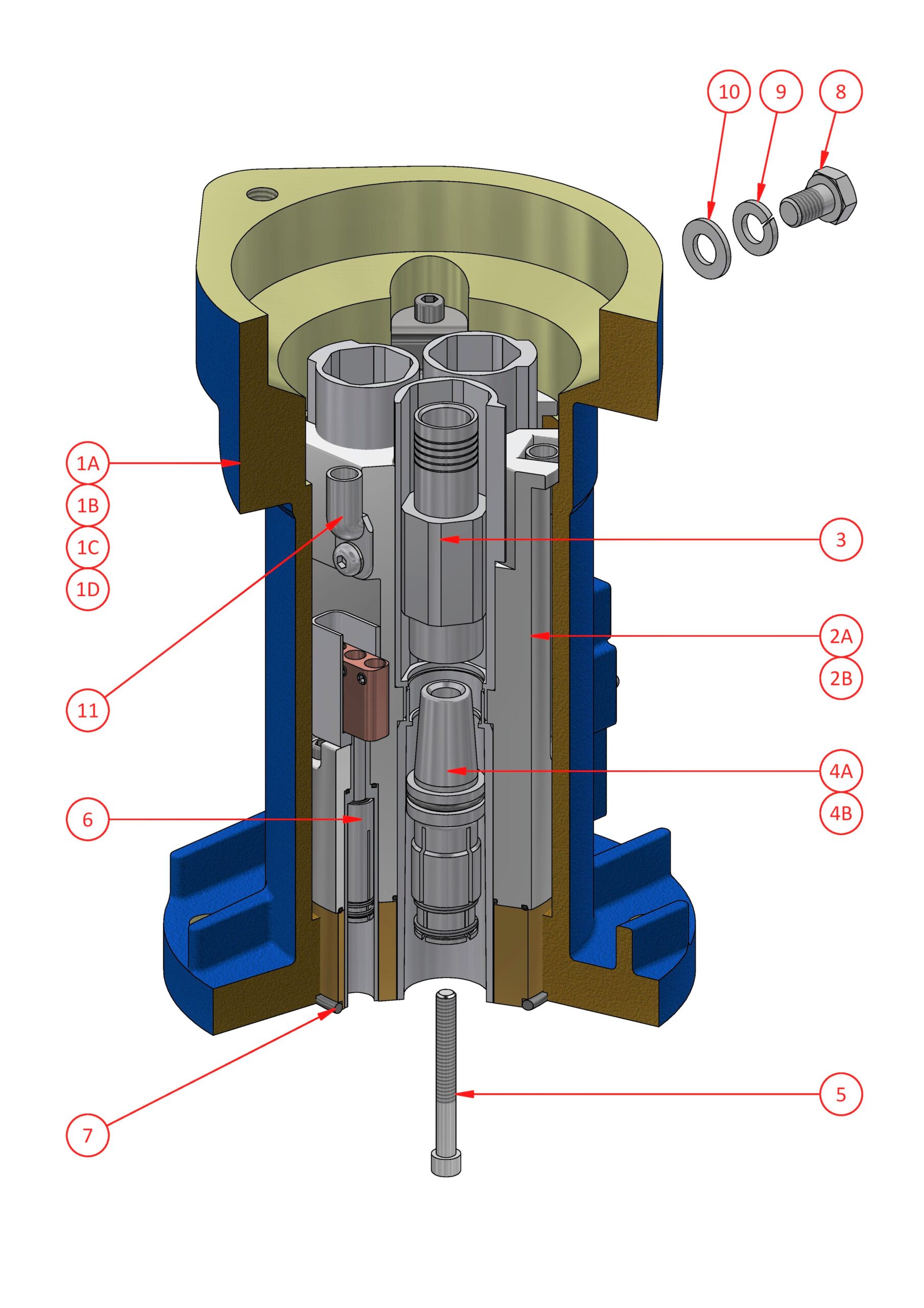

#	Part Number	Description
1A	F-3432-364T	300A 660V Coupler Body c/w items 1A, 7, 8, 9 & 10
1B	F-3432-314T	300A 1100V Coupler Body c/w items 1B, 7, 8, 9 & 10
1C	F-3432-464T	425A 660V Coupler Body c/w items 1C, 7, 8, 9 & 10
1D	F-3432-414T	425A 1100V Coupler Body c/w items 1D, 7, 8, 9 & 10
2A	F-4812	Interior c/w Earth Lugs, Screws, Pilot Socket Assy & Retaining Bracket
2B	F-4812KIT	Interior Service Kit c/w Insulators & O-rings
3	See Table 2	Phase Thimble
4A	F-201-299	300A Phase Socket c/w O-ring AI019013
4B	F-201-300-1	425A Phase Socket c/w O-ring AI019013
5	AH009868	Screw 1/4" x 2 1/4" skt. head
6	F-4819	Pilot Socket Assy c/w O-ring AI019065 & Pilot Thimble
7	AI019006	O-ring ID 82.14 x sect. 3.53
8	AH113111	Screw M10 x 16 hex. head
9	AH151011	Spring Washer M10
10	AH150011	Washer M10
11	F-AH017206B	Earth Lug c/w screw AH115115 & washer AH150014
