Back to Back Receptacle Quick Release (660V – 1100V) – 150 Amp Series

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number	Description	Colour
AH164BQR	660V Back to Back Receptacle Quick Release	Orange
AH114BQR	1100V Back to Back Receptacle Quick Release	Blue

Table 2

Table 3

Table 4

Options

Part Number	Description
S	Skid Plate
L	Lockable Hasp

Examples: AH164BQRS, AH164BQRL, AH164BQRSL

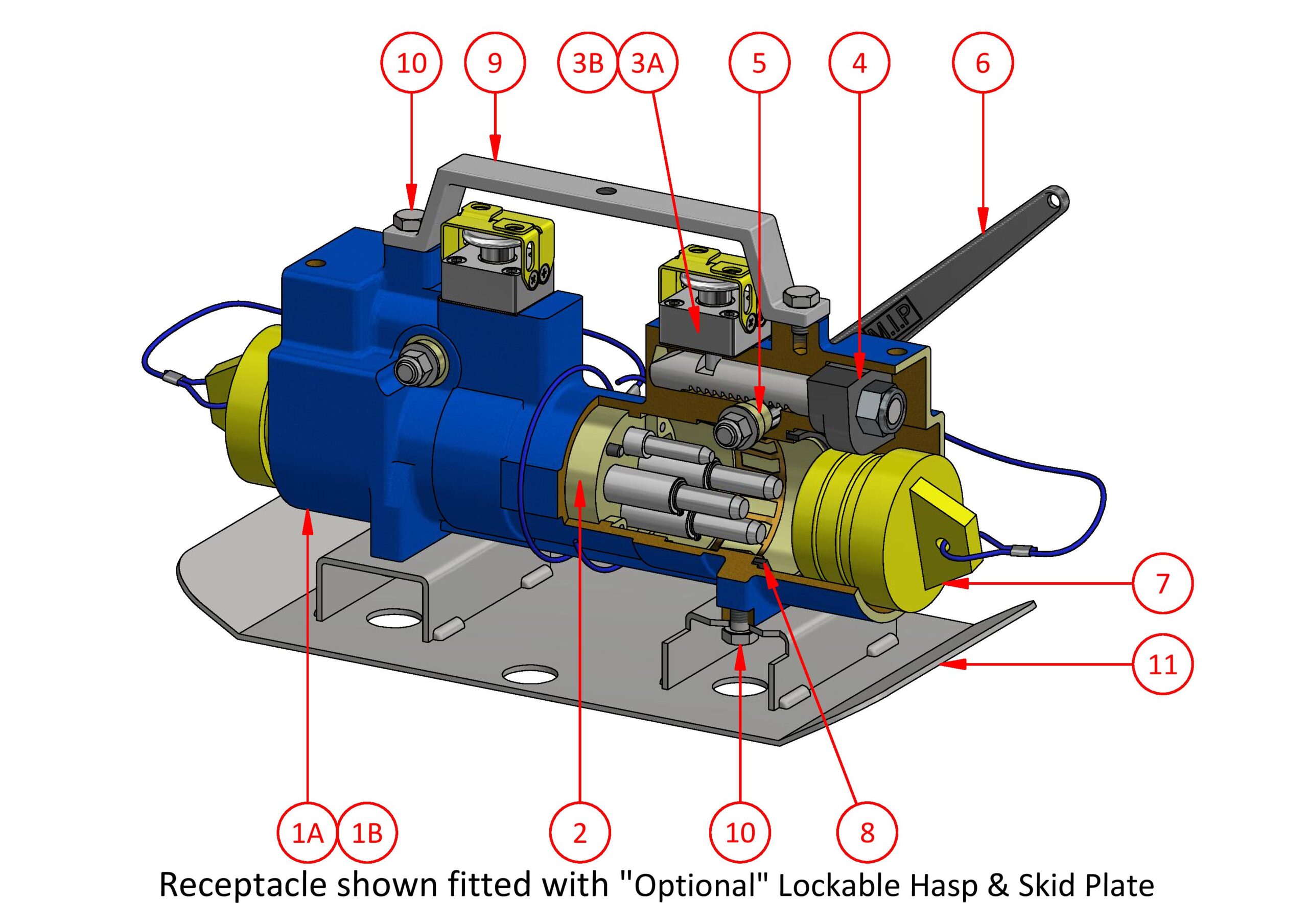

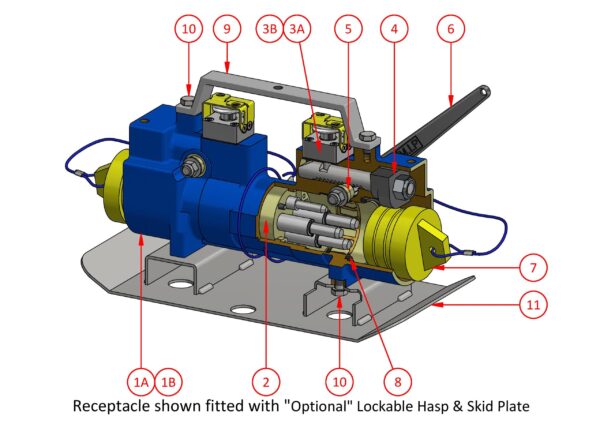

Spare Parts

#	Part Number	Description
1A	F-4117QR-164	660V Back to Back Body c/w items 1A, 3, 4, 5, 8, 9 & 10
1B	F-4117QR-114	1100V Back to Back Body c/w items 1B, 3, 4, 5, 8, 9 & 10
2	F-348-1	Interior c/w screws AH115135 M6 x 35 skt. head
3A	F-459	Q/R Locking Mechanism c/w screws AH009860 1/4" x 1" skt. head
3B	F-459L	Q/R Locking Mechanism c/w Lockable Hasp & AH009860 1/4" x 1" skt. head
4	F-460	Q/R Rack
5	F-482	Q/R Pinion c/w Handle
6	4285	Q/R Handle
7	F-310	Sealing Plug
8	4401-2	Seal
9	4035	Lifting Handle
10	AH113111	Screw M10 x 16 hex. head
11	4043S	Skid Plate
