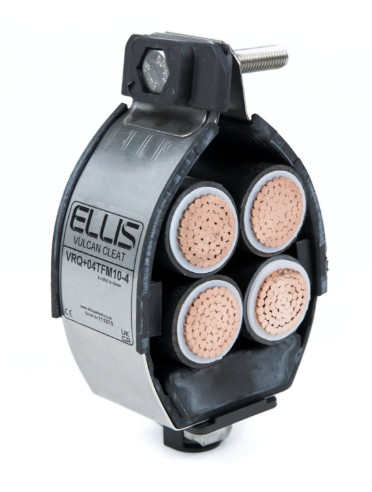

VULCAN+ QUAD CABLE CLEAT 43-47mm TFM

Product Description

Cleat is supplied with all the required fixings pre-installed, this development simplifies the ordering process and makes a dramatic saving on the installation time. The Twist-Foot cleats which are supplied pre-assembled, are suitable for all installations using cable channel and ladder with inverted rungs. There are single-footed versions for cables in trefoil up to 70mm, and double-footed versions for cables with diameters ranging from 67mm to 101mm.

X denotes fixing material
options are as follows: 4 = AF stainless steel
G = Galvanised steel
Z = Zinc plated steel. E.G. A EPVRQ-00CTFM10-X with stainless steel twist foot fixing becomes EPVRQ-00CTFM10-4 The single version locks in place with nothing more complex than a 90-degree turn and the tightening of the integral securing bolt
while the double-footed version is secured with tabs that are simply rotated 90 degrees to engage the channel nut
before the securing bolt is tightened.

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Material Suffix	4/G/Z
Short Circuit Test @ 600mm (kA)	119
Short Circuit Test @ 300mm (kA)	134
Cable Range Min Dia. mm)	43
Cable Range Max Dia. mm)	47
Dimensions W (mm)	120
Dimensions H (mm)	166
Dimensions D (mm)	54
Weight	502
