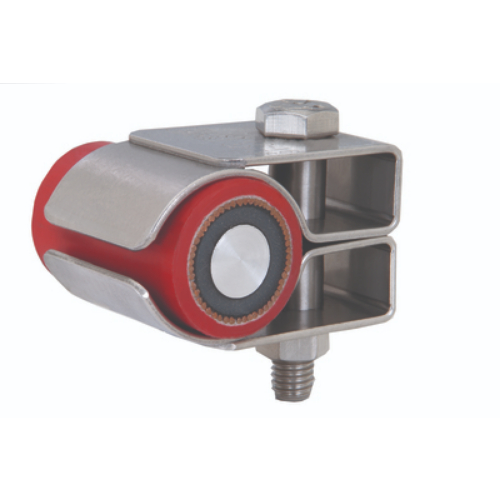

PHOENIX ONE-HOLE CABLEC LAMP 51-57mm

SKU: EP1FP-19SS Category:

Description

The Phoenix® range is specifically designed for the installation of Fire Protection (FP) rated cables. Precision engineered from Type 316L stainless steel with single bolt fixing, Phoenix® Cable Clamps are available in 11 sizes to suit single cables from 10mm to 65mm in diameter. Tested in accordance with BS 8491 & BS 5839-1:2002, Section 26. 2d.

Additional information

Short Circuit Test @ 600mm (kA)

60

Short Circuit Test @ 300mm (kA)

31

Cable Range Min Dia. mm)

51

Cable Range Max Dia. mm)

57

Dimensions W (mm)

85

Dimensions H (mm)

64

Dimensions D (mm)

40

Dimensions P (mm)

13.7

Fixing Holes

1 X M10

Weight

242
