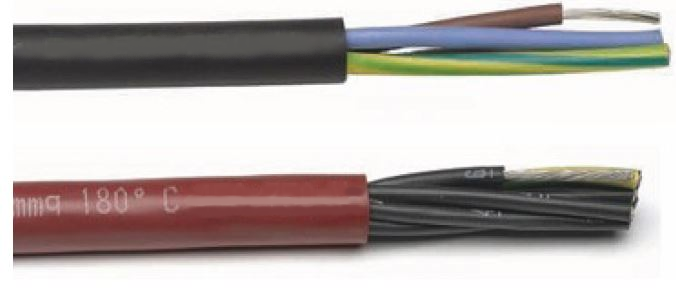

Multicore Silicone High Temp Cable LSZH 180°C 0.6/1.0KV

Typical Uses

Electric signs, spotlights, public lighting

Electric motor applications
Power supplies
Electrical appliances
Heavy industry
Medical areas
Railway and shipping construction

Temperature Range: -20 to +90°C static
-20 to +90°C flexible

Maximum Service Temperature: 90°C

Rated Voltage: 0.6/1kV

Relevant Standards: AS/NZS 1125, AS/NZS 3808, IEC 60332-1, IEC 60092-350

Maximum Bending Radius: For fixed installation 4 x cable diameter
For flexible installation 7.5 x cable diameter

The materials used in the manufacture of these cables are RoHS Compliant.

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Cable Construction

Conductor: Fine strands of plain electrolytic copper wire for improved flexibility. Class 5.
Insulation: NBR Elastomer compound specially designed for resistance to migration and cold flexibility.
Inner sheathing: PVC Silicate powder lubricant between cores and inner sheath to reduce friction.
Braiding: Galvanised steel wires for screening and mechanical protection. Total coverage 80%.
Outer sheathing: NBR Elastomer resistant to oil, petrol and chemicals as well as to abrasion.

UV stabilised and flame retardant.

Properties

Resistant to:

High molecular oils
Animal and vegetable fats
Alcohols
Diluted acids
Low Smoke, Zero Halogen

Technical Data

Part Number	Size mm²	Nom. Stranding No./mm	Nom. O.D. mm	Approx. Cable Weight Kg/Km

HO5RN-F 300/500V

HO7RN-F 0.6/1kV
