The closure fixings are manufactured from grade A4-70 stainless steel. The Emperor can be fixed to the supporting structure by either two M10 fixings or one M12 fixing. Non-standard cleat designs can be supplied upon request.

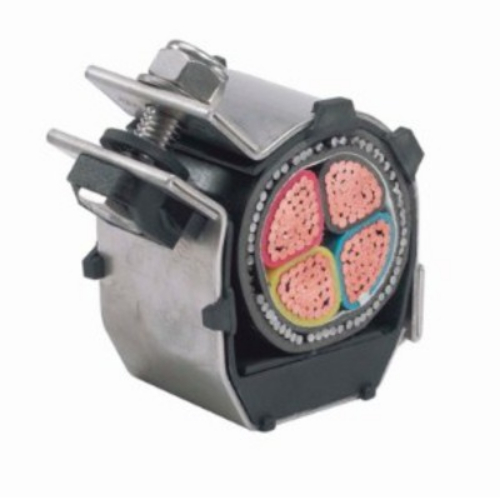

The Emperor™ cable cleat has been designed, developed, tested and manufactured in accordance with IEC 61914 (cable cleats for electrical installations). This cleat is suitable for single cable formation and comes in a range of sizes. The frame of the cleat is manufactured from 2mm corrosion-resistant grade 316L stainless steel, the cable is supported by a liner manufactured from a low smoke zero halogen (LSOH) material.
| Short Circuit Test @ 600mm (kA) | 150 |
|---|---|
| Short Circuit Test @ 300mm (kA) | 193 |
| Cable Range Min Dia. mm) | 37 |
| Cable Range Max Dia. mm) | 45 |
| Dimensions W (mm) | 96 |
| Dimensions H (mm) | 93 |
| Dimensions D (mm) | 54 |
| Dimensions P (mm) | 25 |
| Fixing Holes | 2 X M10 + 1 X M12 |
| Weight | 470 |
