Add suffix for material type, options are as follows:
0 = Aluminium Extruded Base, 1 = LSF Zero Halogen Base
E.G. EPALP01-AN in Aluminium Extruded Base EPALP01-AN0
EPALP01-AN in LSF Zero Halogen Base = EPALP01-AN13

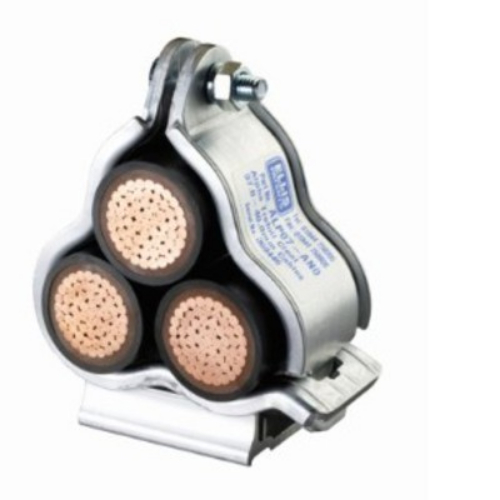

Light Duty and compact, designed for cables in trefoil arrangement.
The polymeric base is used in applications where galvanic corrosion is a concern.
6000 series aluminium frame
Zinc-plated steel M8 closure fixings.
Avaiable with aluminium or polymer base
Polyester coated frames available on request.
Short-circui and mechanically tested to IEC 61914.
ABS approved and UL listed.
| Material Suffix | AN0/AN1 |
|---|---|
| Short Circuit Test @ 600mm (kA) | 74.5 |
| Short Circuit Test @ 300mm (kA) | 84.7 |
| Cable Range Min Dia. mm) | 54.6 |
| Cable Range Max Dia. mm) | 59 |
| Dimensions W (mm) | 135 |
| Dimensions H (mm) | 156 |
| Dimensions D (mm) | 48.5 |
| Fixing Holes | 1 X M10 |
| Weight | 307 |
