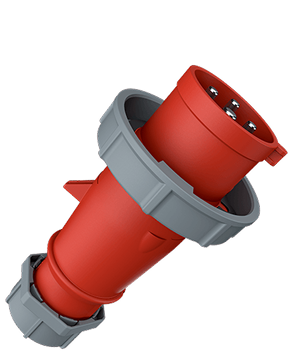

| Part Number | ME2175B |
| Product series | AM-TOP |
| Ampere | 32A |
| Number of poles | 4p |
| Clock position | 3h |
| Nominal voltage AC | 380 - 440V |
| Nominal frequency | 50 - 60 Hz |
| Protection type IP | IP67 |
| Contact carrier | highly heat resistant contact carrier, nickel plated contacts |
| Connection | screw terminals |
| Contact screw drive | PZ2, slot |
| Tightening torque connection terminal for cable cross-section 2,5 - 4,0 mm² | 0.8 Nm |
| Tightening torque connection terminal for cable cross-section 6,0 mm² | 1.2 Nm |
| Recommended wire end treatment for supply cable connection terminal | ferrule square gasproof crimped |
| Strip length jacket | 50 mm |
| Strip length conductor | 12 - 17 mm |
| Phase inverter | without phase inverter |
| Pilot contact | without pilot contact |
| Conductor cross-section min. | 2.5 mm² |
| Conductor cross-section max. | 6 mm² |
| Cable kink protection | integrated in cable gland |
| Protective grommet | without protective grommet |
| Protective cap | without protective cap |
| Weight (net) | 300 g |
| Packaging unit | 10 pcs |
| Quantity per pallet | 720 pcs |
| EAN / identification number | 4015394263098 |
| Permanent ambient temperature | -25 °C | 40 °C |
| Housing | PA6 red [similar RAL 3013] TPE black [similar RAL 9005] |
|||||||||||||||
| Bayonet ring | PC/PET squirrel grey [similar RAL 7000] | |||||||||||||
| Clamp basket | PA6 natural colour [no RAL colour code] TPE natural colour [no RAL colour code] |
|
| Fastening | PA6 squirrel grey [similar RAL 7000] |
| The material resistance overview can be found on the website in the section “Knowledge” - “Product knowledge” - “Materials”. |
| RoHS 2011/65/EU incl. 2015/863/EU | ✓ | ||||||
| POP regulation (EU) 2019/1021 | ✓ |
| Norm | DIN EN IEC 60309-2 | ||
| Declaration of Conformity | CE |
| Test label | CB Zertifikat, VDE, EAC, CQC |
