Single Core Double Insulated Rubber Flexible Cable LSZH X-HF-110 0.6/1kV

Single Core Double Insulated Rubber Flexible Cable LSZH X-HF-110 0.6/1kV

Typical Uses

Power:
Switchboards, flexible droppers from busbars, transformers, load banks, or other equipment requiring fixed installation wiring. Suitable for Mains, sub-mains & sub-circuits unenclosed, enclosed in conduit & for direct buried in underground ducts.
Automotive:
Battery leads, battery chargers, electric forklifts etc.
Welding:
Earth and electrode leads.

The materials used in the manufacture of these cables are RoHS Compliant.

Temperature Range: -40 to 110°C static
-25 to 90° flexing
Maximum Conductor Temperature: 110°C
Rated Voltage: 0.6/1kV
Current Rating: Based on Table 9 of AS/NZS 3008
Relevant Standards: AS/NZS 1125 IEC 60332-1 AS/NZS 5000.1 AS/NZS 3808
Bending Radius: 5 X Cable Diameter after installed,
7 X Cable Diameter during installing.

Core Colour

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

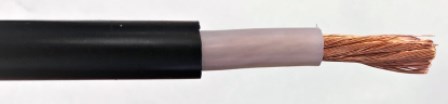

Cable Construction

  1. Conductors:
    Conductors of extra fine bare annealed copper wires to International Standards to ensure maximum flexibility. Class 5 & 6.
  2. Insulation:
    X-HF-110 flexible insulation for conductor temperature of 110°C.
  3. Sheath:
    Low Smoke Zero Halogen HFS-110-TP thermosetting compound.

UV resistant and flame retardant.

Splash resistant to oil, chemically resistant, heat & weather resistant, excellent abrasion resistance and ozone resistant.

Technical Data

Part Number Size mm² Nom. Stranding No./mm Insulation Thickness mm Nom. Sheath Thickness mm Nom. O.D. mm Conductor resistance @20°C Ω/km Nom. Amps 40°C Spaced Approx. Cable Weight Kg/Km Maximum Pulling Tension kN
AR110/006OR 6 176/0.20 0.7 1.4 7.6 3.3 70 94 0.42
AR110/010OR 10 294/0.20 0.7 1.4 8.5 1.91 99 135 0.7
AR110/016OR 16 470/0.20 0.7 1.4 9.7 1.21 130 195 1.12
AR110/025OR 25 726/0.20 0.9 1.4 11.5 0.78 173 287 1.75
AR110/035OR 35 1040/0.20 0.9 1.4 12.7 0.554 214 388 2.45
AR110/050OR 50 1499/0.20 1 1.4 14.7 0.386 270 540 3.5
AR110/070OR 70 2165/0.20 1.1 1.4 16.8 0.272 340 735 4.9
AR110/095OR 95 2745/0.20 1.1 1.5 18.6 0.206 410 943 6.65
AR110/120OR 120 1544/0.30 1.2 1.5 20.3 0.161 487 1180 8.4
AR110/150OR 150 1961/0.30 1.4 1.6 22.6 0.129 562 1484 10.5
AR110/185OR 185 2331/0.30 1.6 1.7 25.2 0.106 644 1772 12.95
AR110/240OR 240 3172/0.30 1.7 1.8 29.1 0.0801 775 2379 16.8
AR110/300OR 300 3965/0.30 1.8 1.9 31 0.0641 895 2958 21
AR110/400OR 400 5246/0.30 2 2 35.4 0.0486 1079 3885 28
AR110/500OR 500 6588/0.30 2.2 2.1 39.2 0.0384 1260 4847 35
AR110/630OR 630 8736/0.30 2.4 2.2 44.3 0.0287 1493 6083 44.1
