Restrained Plug (3300V) - 425 Amp Series - AF434T3

Restrained Plug (3300V) – 425 Amp Series – AF434T3

Need help choosing the right product?

Our team is here to help.

Contact Us

Table 1

Part Number Description Colour
AF434T3 3300V Restrained Plug Red/Silver
NB: Plug supplied with Pilot Thimble
Phase Thimble – c/w screw AH115147 M6 x 40 skt. head
NB: Use ID for thimble selection
Neoprene Grommets
Part Number Cable Acceptance mm
3054-25 22.0-25.0
3054-31 24.0-31.0
3054-35 30.0-35.0
3054-38 34.0-38.0
3054-41 37.0-41.0
3054-45 40.0-45.0
3054-47 44.0-47.0
3054-51 46.0-51.0
3054-54 50.0-54.0
3054-57 53.0-57.0
3054-60 56.0-60.0
3054-64 59.0-64.0
3054-67 63.0-67.0
3054-70 66.0-70.0
3054-73 69.0-73.0
3054-76 72.0-76.0

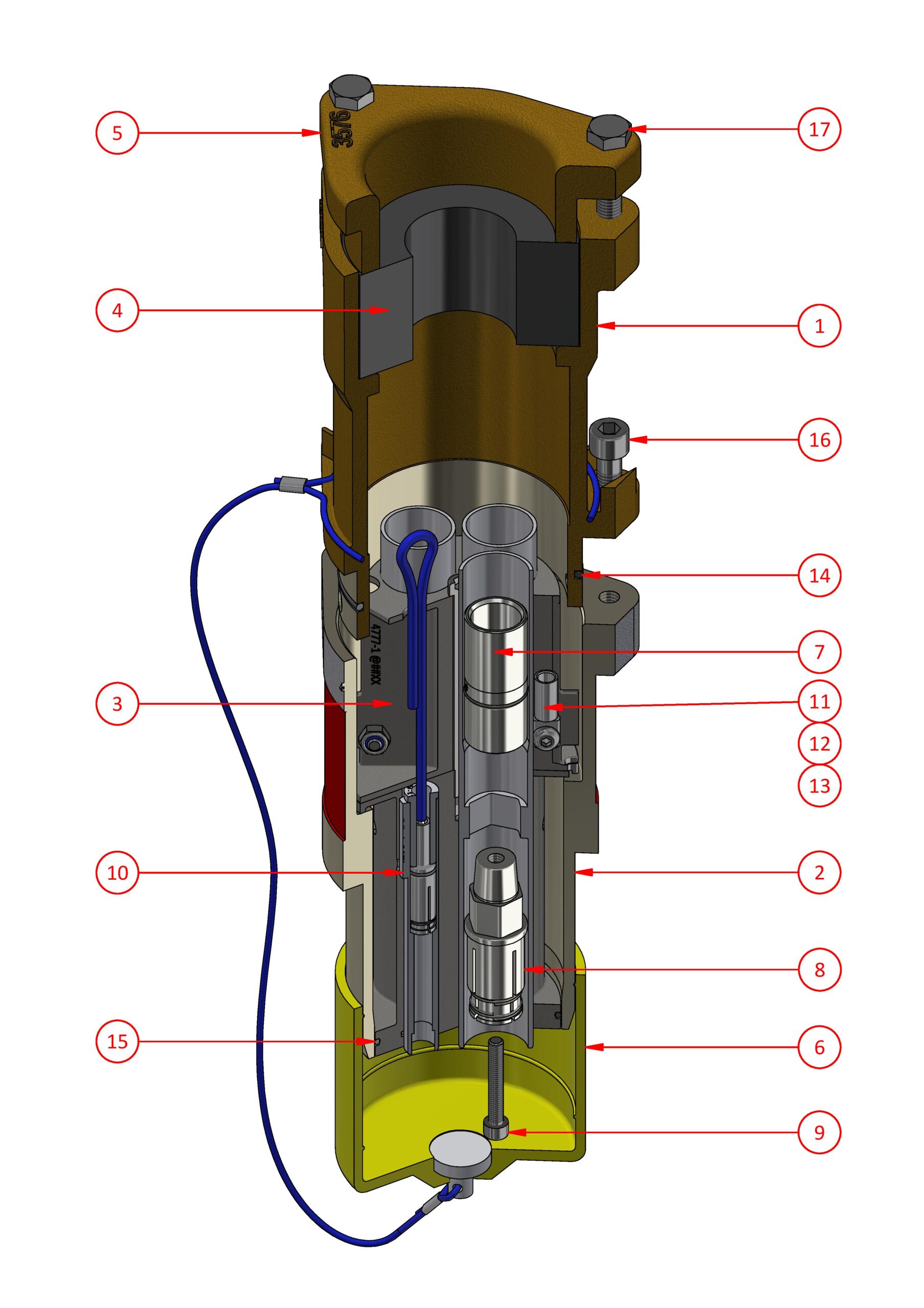

# Part Number Description
1 F-3339-434T 3300V Small Gland Body c/w items 1, 5, 14, 16 & 17
2 F-3342-434T 3300V Nose Cone
3 F-4777-60 Interior Assy c/w Insulators, Pilot Assy, Earth Lugs, O-Rings, Screws and Washers
4 Neoprene Grommet See Table 3
5 3576B Clamping Cap
6 F-264L Protection Cap
7 Phase Thimble c/w screw & O-ring See Table 2
8 F-4787 Phase Socket
9 AH115147 Screw M6 x 40 skt head
10 F-4791-60 Pilot Socket Assy c/w insulator, o-ring & lead
11 AH017258 Earth Lug
12 AH117116 Screw M6 x 12 button head
13 AH122001 M6 Nyloc Nut
14 AI019011 O-ring ID 91.67 x sect. 3.53
15 AI019056 O-ring ID 75.87 x sect 2.62
16 AH117113 Screw M10 x 40 skt. head
17 AH113116S Screw M10 x 50 hex. head
