Description

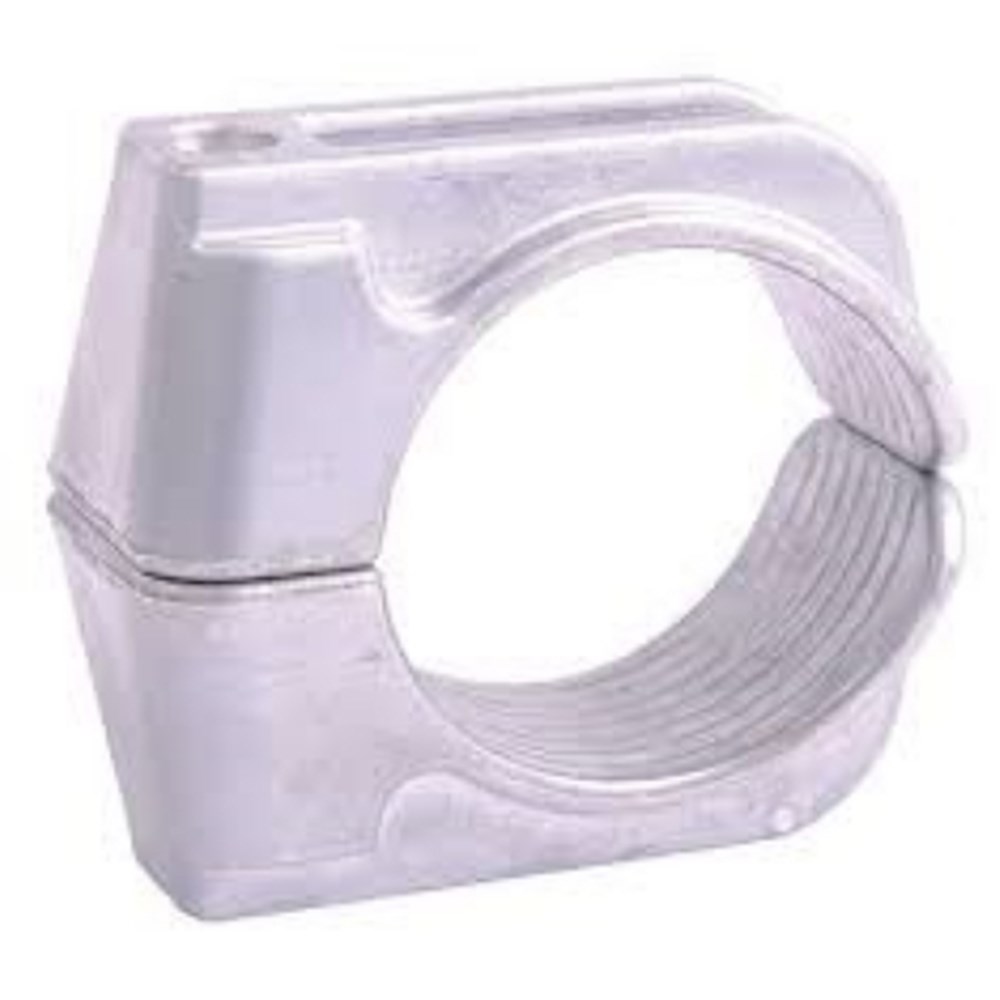

2 hole clamp manufactured in LM6 aluminium
Accomodates 10mm-57mm dia. cables across 10 sizes
Fixings are not supplied as standard but can be made avaialble in request.
Short circuit and mechanically tested to IEC61914.
ONE HOLE SINGLE CABLE CLAMP 10-13mm
Additional information
| Short Circuit Test @ 600mm (kA) | 70.8 |
|---|---|
| Cable Range Min Dia. mm) SINGLE | 10 |
| Dimensions W (mm) | 37.8 |
| Dimensions H (mm) | 27-30 |
| Dimensions D (mm) | 41.4 |
| Dimensions E (mm) | 10.2 |
| Fixing Holes | 1 X 10M |
| Weight | 43 |
