The closure fixings are manufactured from grade A4-70 stainless steel. The Emperor can be fixed to the supporting structure by either two M10 fixings or one M12 fixing. Non-standard cleat designs can be supplied upon request.

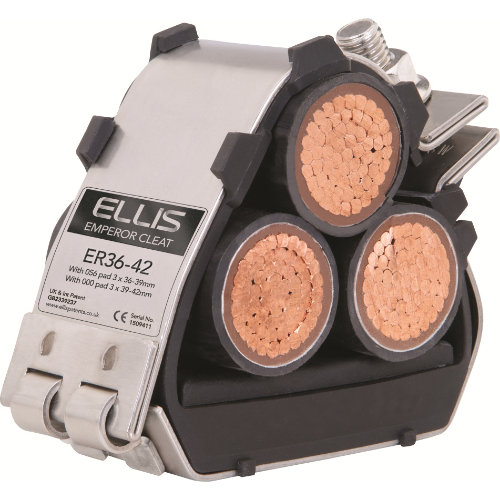

The Ellis Emperor™ cable cleat has been designed, developed, tested and manufactured in accordance with IEC 61914. The Emperor is available in a range of sizes with range taking ability to suit cables in trefoil formation. The frame of the cleat is manufactured from 2mm corrosion-resistant grade 316L stainless steel, the cable is supported by a liner manufactured from a low smoke zero halogen (LSOH) material.
| Short Circuit Test @ 600mm (kA) | 149 |
|---|---|
| Short Circuit Test @ 300mm (kA) | 195 |
| Cable Range Min Dia. mm) | 40 |
| Cable Range Max Dia. mm) | 46 |
| Dimensions W (mm) | 125 |
| Dimensions H (mm) | 106 |
| Dimensions D (mm) | 54 |
| Dimensions P (mm) | 50 |
| Fixing Holes | 2 X M10 + 1 X M12 |
| Weight | 605 |
