| Product Details | |
|---|---|
| Weight | 32kg |
| Dimensions | L 200mm W 210mm H 280mm |
| Compliance | Explosion protected to IEC60079 Series |
| Materials | Manganese Bronze |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.

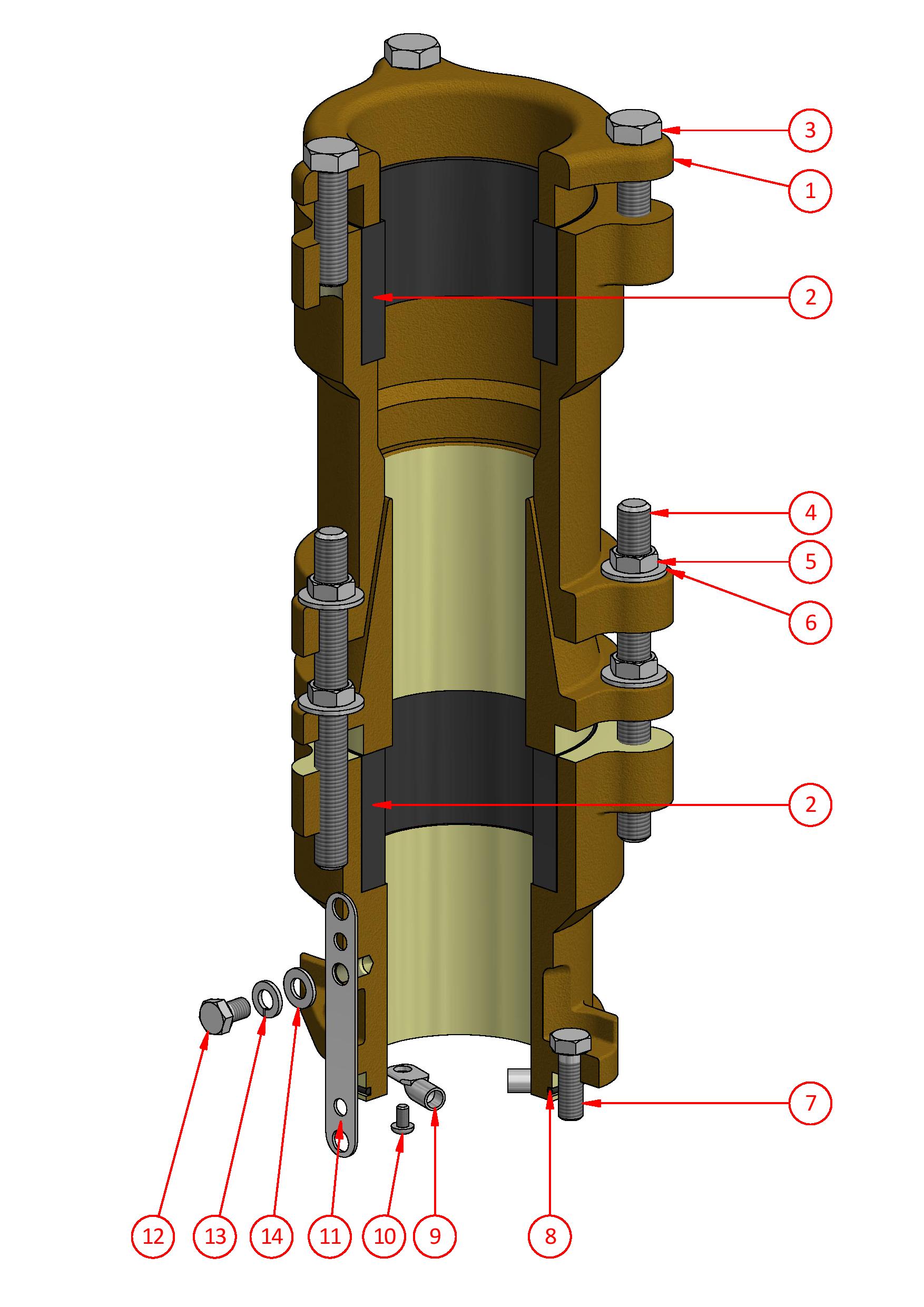

| # | Part Number | Description |
|---|---|---|
| 1 | 3225B | Clamping Cap |
| 2 | Silicone Grommet | See Table 2 |
| 3 | AH113154 | Screw M16 x 60 hex. head |
| 4 | 3227-1 | Stud M16 |
| 5 | AH120015 | Nut M16 |
| 6 | AH009282 | Washer M16 |
| 7 | AH113134 | Screw M12 x 35 hex. head |
| 8 | AI019010 | O-ring ID 120.24 x sect. 3.53 |
| 9 | AH017206 | Earth Lug |
| 10 | AH115115 | Screw M6 x 10 button head |
| 11 | 201-264-1 | Earth Strap |
| 12 | AH113111 | Screw M10 x 16 hex. head |
| 13 | AH151011 | Spring Washer M10 |
| 14 | AH150011 | Washer M10 |
